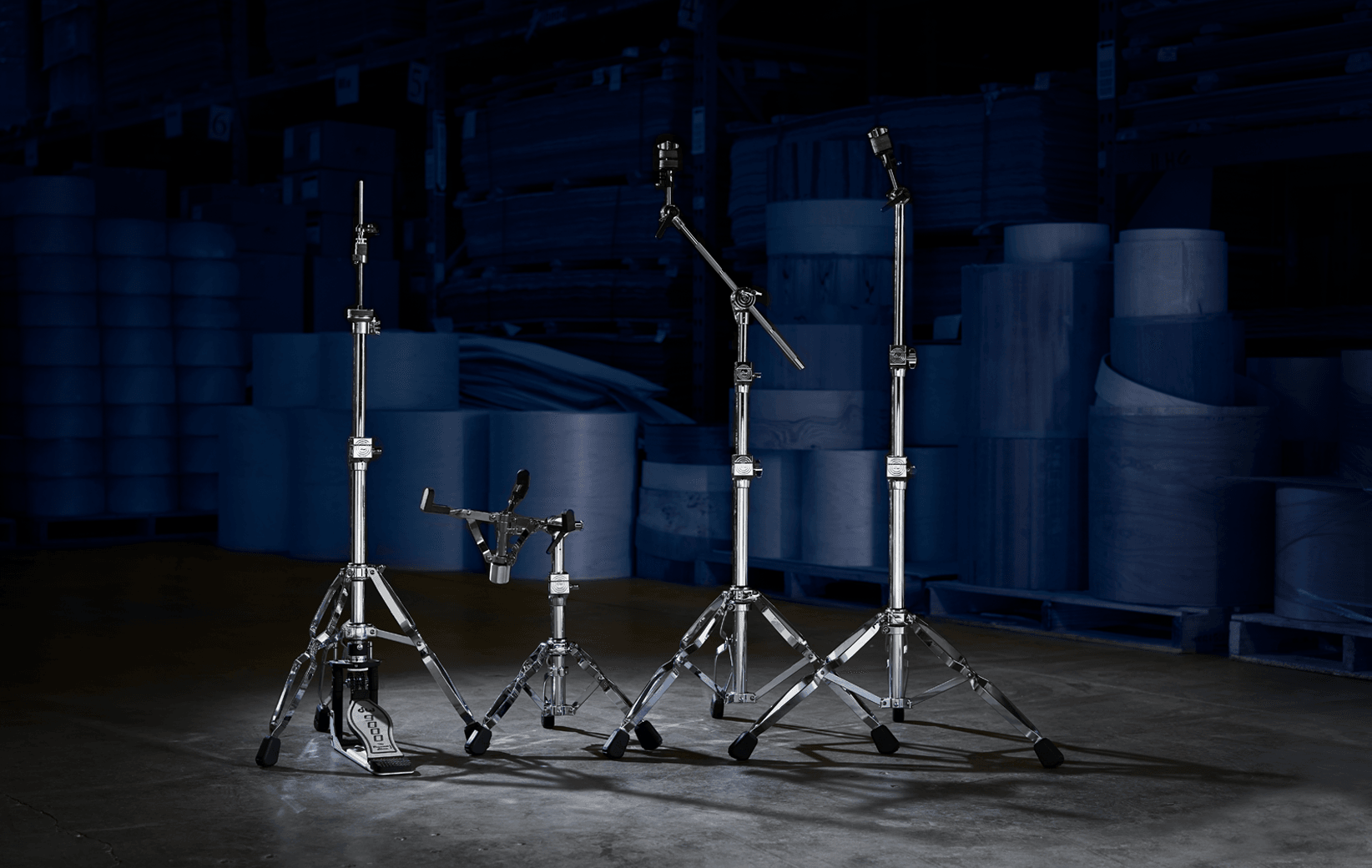

9000 series hardware

9000 Series offers heavy-duty and lighter weight stands in both straight and straight/boom configurations and now even with Airlift options. DW designers, drummers and techs around the world insist on memory locks on the tube joints and the tripod leg assembly, plastic tube insulators, toothless tilters, large reset handles, secondary tilter locks, cymbal space adjusters and heavy gauge tubing. DW 9000 Series Stands deliver all of this and more.

9300AL & 9900AL Airlift Stands






9300AL SNARE STANDS



9900AL TOM STANDS


Adjusting your rack toms and snare drum just got easier. With recent advancements in drum manufacturing and hardware design, everything seems to weigh more these days. From counter hoops to metal shells and lugs, more than ever, instruments are built to last. As a result, making a simple height adjustment on toms or snare drums has become a challenge. Enter, revolutionary new Airlift hardware. The secret is a pneumatic shock that effortlessly allows drums to float on a cushion of air for quick, effortless and exact adjustments every time. The patented, Randall May-designed system is available in our top-selling, road-proven 9300 snare stand and 9900 tom stand.
Other than the Airlift feature, these stands are identical to their world-renown non-airlift versions.

back to top

9500D & 9500TB Model Hi Hats


SPECIFICATIONS:
[wt. 12.2 lbs] [tallest playing height: 43"] [lowest playing height: 28"] [1" upper tube] [1 1/4" base tube]
Playing height varies depending on cymbals. *Also Available in Gold
9000 Series Pedals are
NOW AVAILABLE ONLINE


Download the Manual: 9500 Hi-Hat Stand (1.3MB)

Double Eccentric Cam Drive

DW 9000 Series Hi-Hats utilize a patented Double Eccentric Cam (shown left) that increases the sensitivity of the footboard in relation to cymbal movement, resulting in a unique, incredibly fast and responsive feel. (U.S. Patent No. 5266733)

The Infinitely Adjustable Locking Spring Tension feature (also shown left) allows for precise adjustment to offset the weight of the top cymbal, creating a customized feel. (Infinite Adjusting Spring Tension on 9500 and 9502LB)




Features


Lateral Cymbal Seat
The Lateral Cymbal Seat is a first in hi-hat design, allowing instant access for adjusting the bottom cymbal angle; a small detail that makes a big difference. (U.S. Patent No. 6570075B1)
Folding Footboard
The uni-body Folding Footboard stays attached to the base casting when secured in the folded position. (U.S. Patent No. 5105706)
Ball Bearing Hinge
The high-tech Ball Bearing Hinge provides smooth, quick action. (U.S. Patent No. 5431081)
SM379 Locking Clutch
The SM379 Locking Clutch comes standard and allows you to dial in closed "sloshyness" and lock it so it doesn't come loose.
Upper Rods
Upper Rods come standard in two lengths (21" and 15"), allowing you to customize the Hi-Hat Stand for your specific needs.
Plastic Tube Insulators
Plastic Tube Insulators inside the heavy gauge tubing are a necessity in recording situations to avoid rattling when drum mics are placed close to stands.
Swivel Legs
Swivel Legs allow easy positioning of bass drum pedals and other stands around the Hi-Hat Stand..
back to top

9502LB Remote Cable Hi Hat


Our cable hi-hat systems have long been known as the most smooth and responsive in the industry. It’s no secret that a higher quality cable yields a better remote hat, but our latest detachable linkage and sturdy, low profile housing have really taken this hi-tech hi-hat to a whole new level. The standard 9000 Series model comes with an 8’ foot cable, with 2, 4, 6 and 10’ cables sold separately. Also included are MG1/MG2 mounting hardware and a free nylon carrying bag. (cymbal stand sold separately) (U.S. Patent No. 5267500)
SPECIFICATIONS: [1" hi hat tube]

Easy Cable Removal



Whether you're detaching your cable for transport, or swapping it out for a different length, our unique Hex Bolt Fitting makes cable removal quick and easy.

9502LB Remote Cable Hi-Hat is
NOW AVAILABLE ONLINE




Features


MG-1 and MG-2 Mega Clamp
The 9502LB comes complete with MG-1 and MG-2 Mega Clamp mounting hardware.
Lateral Cymbal Seat
The Lateral Cymbal Seat is a first in hi-hat design, allowing instant access for adjusting the bottom cymbal angle; a small detail that makes a big difference. (U.S. Patent No. 6570075B1)
Folding Footboard
The uni-body Folding Footboard stays attached to the base casting when secured in the folded position. (U.S. Patent No. 5105706)
Ball Bearing Hinge
The high-tech Ball Bearing Hinge provides smooth, quick action. (U.S. Patent No. 5431081)
505 Drop-Lock Clutch
The 505 Drop-Lock Clutch, closes with a “click” of the oversized, rubber-coated latch. A must when using the remote hi-hat and/or double pedal set up. Comes standard on the 9502LB. (U.S. Patent No. 5668332)
Hardware Bag
The 9502LB comes with a Hardware Bag to protect the stand and provide convenient storage. Features a separate compartment for the mounting hardware.
back to top

9550 Remote Universal Hi Hat


All of the heavy-duty features associated with the 9000 Series line of hardware, like heavy gauge steel tubing, integrated vise memory lock and lateral cymbal seat adjustment, are standard. The 9550 comes complete with auxiliary pedal, MG1 and MG2 mounting clamps and Universal Linkage with two extension options.

SPECIFICATIONS:
[1" upper tube] [1 1/4" base tube]


9550 Universal Close-Up


The 9550 Universal Hi-Hat System represents the latest advancement in hi-hat technology. Using DW’s Universal Linkage Assembly, the 9550 achieves lightning-fast response and a smooth, effortless feel. It can be placed on either side of the kit, making it a multi-position primary hi-hat or a versatile auxiliary hi-hat for secondary hat sounds and effects cymbals.

9550 Remote Universal Hi-Hat is
NOW AVAILABLE ONLINE




Features


MG-1 and MG-2 Mega Clamp
The 9502LB comes complete with MG-1 and MG-2 Mega Clamp mounting hardware.
Lateral Cymbal Seat
The Lateral Cymbal Seat is a first in hi-hat design, allowing instant access for adjusting the bottom cymbal angle; a small detail that makes a big difference. (U.S. Patent No. 6570075B1)
Ball Bearing Hinge
The high-tech Ball Bearing Hinge provides smooth, quick action. (U.S. Patent No. 5431081)
SM379 Locking Clutch
The SM379 Locking Clutch comes standard and allows you to dial in closed "sloshyness" and lock it so it doesn't come loose.
Upper Rods
Upper Rods come standard in two lengths (21" and 15"), allowing you to customize the Hi-Hat Stand for your specific needs.
Plastic Tube Insulators
Plastic Tube Insulators inside the heavy gauge tubing are a necessity in recording situations to avoid rattling when drum mics are placed close to stands.
back to top

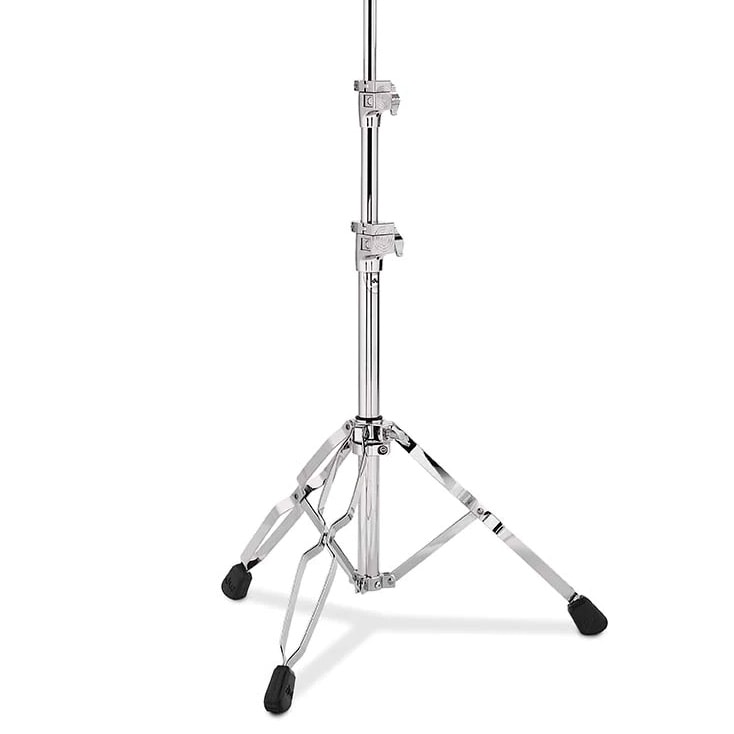

9700 Cymbal Stands



Whether you chose the versatile 9700 straight/boom cymbal stand, beefy 9710 straight stand or new 9701 low model, you’ll be playing a cymbal stand that’s used by more top professionals than any other. Drummer-friendly features like toothless tilter with Techlock, adjustable cymbal seat, integrated memory locks and heavy-gauge tubing make these stands road worthy and reliable beyond compare.

SPECIFICATIONS:
[9700 wt. 12.3 lbs / 9710 wt. 10.4 lbs] [9700 & 9710: 3/4" upper tube, 1" middle tube, 1 1/4" base tube]
[9701: 1" upper tube, 1 1/4" base tube] [9701 & 9700: 1/2" boom arm]
[maximum cymbal seat height for 9710 65" / for 9700 88"]

Also Available in Gold

Download the Manual: 9700 Straight/Boom Cymbal Stand (764KB)

9700 Cymbal Stands are
NOW AVAILABLE ONLINE




Features


Adjustable Cymbal Seat
The patented Cymbal Seat Adjustment can be raised or lowered and quickly locked in place to adjust cymbal movement as needed. (U.S. Patent No. 4889028)

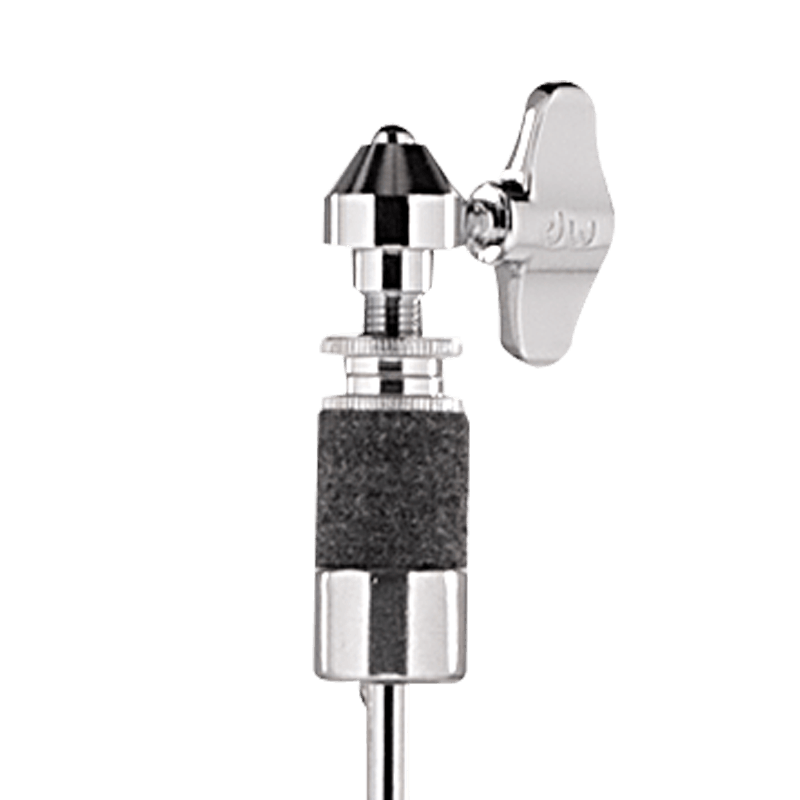

Integrated Seat Felt
Integrated Cymbal Seat & Wingnut Felt keep your parts on the stand or in your hand... not on the floor, where they always seem to diappear!
Infinite Toothless Tilter
The Toothless Tilter with TechLock® allows for infinite adjustment and secure positioning.

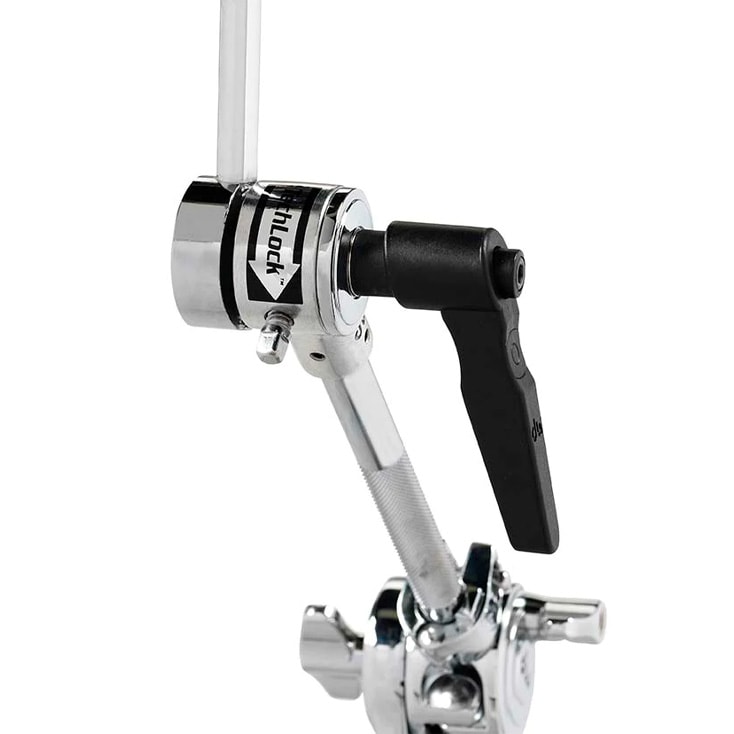

TechLock®
The TechLock® secondary drum key locking system is inspired by working drum techs. On all DW 9000 hardware, it's a safe-guard against slippage.
Plastic Tube Insulators
Plastic Tube Insulators inside the heavy gauge tubing are a necessity in recording situations to avoid rattling when drum mics are placed close to stands.
Hinged Memory Locks
Hinged Memory Locks are included at tube joints, cymbal arms and tripod leg assemblies to guarantee 100% repeatable, precise height settings every time.
back to top

9700XL Extra Large, Heavy-Duty Cymbal Boom Stand



The 9700 XL is just that, an extra-large version of our popular 9700 convertible straight/boom cymbal stand. It includes a larger-footprint Mega Tripod™ base, larger diameter steel tubing (1.5" at the base), removable counter weight, toothless tilter with Techlock®, integrated memory locks and more. This stand is perfect for drummers that require additional reach and sturdiness for larger diameter cymbals.

SPECIFICATIONS:
[1" upper tube, 1 1/4" middle tube, 1 1/2" base tube]

Also Available in Gold

9702 Multistand


The 9702 Dual Cymbal Multi-Stand is yet another innovation designed to give drummers almost limitless set-up options. The versatile stand features dual ratchet boom with X-Pand™ quick release, mega-tripod base, heavy duty 1.25” tubing and toothless tilters. With the 9702, less hardware is needed to accomplish the same task while never sacrificing stability.
[3/4" upper tube] [1" middle tube] [1 1/4" base tube] [1/2" boom arm]

The 9702 Multistand is
NOW AVAILABLE ONLINE


The SM2034 Cymbal Tilter and SM2035 Percussion Arm are great additions to open maximum possibilities.




Features


Adjustable Cymbal Seat
The patented Cymbal Seat Adjustment can be raised or lowered and quickly locked in place to adjust cymbal movement as needed. (U.S. Patent No. 4889028)
Integrated Seat Felt
Integrated Cymbal Seat & Wingnut Felt keep your parts on the stand or in your hand... not on the floor, where they always seem to diappear!
Infinite Toothless Tilter
The Toothless Tilter with TechLock® allows for infinite adjustment and secure positioning.
TechLock®
The TechLock® secondary drum key locking system is inspired by working drum techs. On all DW 9000 hardware, it's a safe-guard against slippage.
Plastic Tube Insulators
Plastic Tube Insulators inside the heavy gauge tubing are a necessity in recording situations to avoid rattling when drum mics are placed close to stands.
Hinged Memory Locks
Hinged Memory Locks are included at tube joints, cymbal arms and tripod leg assemblies to guarantee 100% repeatable, precise height settings every time.
Dual Ratchet Boom
Dual Ratchet Boom
X-Pand™ Quick-Release Ratchet
X-Pand™ Quick-Release Ratchet
Mega Tripod Base
Mega Tripod Base



back to top

9799 Dual Straight/Boom Cymbal Stand



Small drum risers sometimes call for unique solutions. That’s why we designed the versatile 9799 stand. It’s a 9000 tom stand with two patented 799 Dog Bone accessories clamp/cymbal arms included. Use it as a double cymbal stand, tom/cymbal stand or double tom stand. You’ll always find a use for this ingenious space saver.

SPECIFICATIONS:
[wt. 20.7 lbs.] [1" upper tube] [1 1/4" base tube] [1/2" boom arm]

Also Available in Gold

Download the Manual: 9900 (9799, 9934, 9991, 9999) Tom Stand (844KB)

The 9799 Dual Straight/Boom Cymbal Stand is
NOW AVAILABLE ONLINE




Features


Adjustable Cymbal Seat
The patented Cymbal Seat Adjustment can be raised or lowered and quickly locked in place to adjust cymbal movement as needed. (U.S. Patent No. 4889028)
Integrated Seat Felt
Integrated Cymbal Seat & Wingnut Felt keep your parts on the stand or in your hand... not on the floor, where they always seem to diappear!
Infinite Toothless Tilter
The Toothless Tilter with TechLock® allows for infinite adjustment and secure positioning.
TechLock®
The TechLock® secondary drum key locking system is inspired by working drum techs. On all DW 9000 hardware, it's a safe-guard against slippage.
Plastic Tube Insulators
Plastic Tube Insulators inside the heavy gauge tubing are a necessity in recording situations to avoid rattling when drum mics are placed close to stands.
Hinged Memory Locks
Hinged Memory Locks are included at tube joints, cymbal arms and tripod leg assemblies to guarantee 100% repeatable, precise height settings every time.



back to top

9900 Tom Stands



Your drum mounting hardware has to do two things really well, hold up your drums and put them exactly where you want them. Enter the 9000 line of tom stands. Made from heavy gauge tubing with oversized tube joints to minimize wobble, and armed with a ball-and-socket adjustment for easy positioning. Stands include 1/2” diameter tom arms to work with DW TB12 brackets and auxiliary clamp for mounting cymbals or other percussion accessories. Single tom, double tom versions and 9934 and 9999 tom/cymbal models are also available.

SPECIFICATIONS:
[1" upper tube] [1 1/4" base tube] [9934 & 9999: 1/2" boom arm]

Also Available in Gold

Download the Manual: 9900 (9799, 9934, 9991, 9999) Tom Stand (844KB)

9900 Tom Stands are
NOW AVAILABLE ONLINE




Features


Tom Mount
Using the Auxiliary Clamp or an available Tom Arm on any of the four basic Toms Stand models, you can easily upgrade or create your own unique set-up by adding the SM934 or SM799.
SM934
SM934 Tube with Boom Cymbal Arm (included with 9934)
SM799
SM799 DogBone® with Boom Cymbal Arm (included with 9999)
Plastic Tube Insulators
Plastic Tube Insulators inside the heavy gauge tubing are a necessity in recording situations to avoid rattling when drum mics are placed close to stands.
Hinged Memory Locks
Hinged Memory Locks are included at tube joints, cymbal arms and tripod leg assemblies to guarantee 100% repeatable, precise height settings every time.



back to top

9300 Snare Stands



The 9300 Series Snare Stands are the only stands designed with double pedal set-ups in mind. The offset basket allows optimal snare positioning while remaining balanced.

The 9303 has a contoured basket to accommodate smaller 10” to 12” snare drums.

SPECIFICATIONS:
[1" upper tube] [1 1/4" base tube]

Also Available in Gold

Download the Manual: 9300 Snare Drum Stand (786KB)

9300 Snare Stands are
NOW AVAILABLE ONLINE




Features


Knurled Snare Basket Knob
The Snare Basket Knob can be easily reversed, allowing the basket to be in a more closed position for holding smaller drums.
snare techlock
The snare drum angle adjustment can be firmly locked with the Large Reset Handle and double locked with TechLock™.
snare basket
The Snare Basket can easily be removed from the tilter, enabling quick snare changes.
Plastic Tube Insulators
Plastic Tube Insulators inside the heavy gauge tubing are a necessity in recording situations to avoid rattling when drum mics are placed close to stands.
Hinged Memory Locks
Hinged Memory Locks are included at tube joints, cymbal arms and tripod leg assemblies to guarantee 100% repeatable, precise height settings every time.



back to top

9399 Tom/Snare Stand





It is more common than ever to see a rack tom mounted in a standard snare basket.  The idea has been around for years and with the growing popularity of vintage drums, it’s even more prevalent today.  That’s the reason we now offer the DW 9000 Series tom/snare stand.  The beefy 9399 specializes in securely cradling rack toms by offering increased isolation and resonance via specially-designed Neoprene® pads.  These soft pads act as a cushion between the basket’s crutch tips and the drum’s counter hoop, while gripping tightly for stable, solid play.  The stand also offers a patented removable, offset basket for easy positioning and quick snare changes.  The larger footprint is courtesy of a Mega-Tripod™ base that gives the 9399 the largest footprint of any DW snare stand.  The result is a heavy-duty, road-worthy stand that gently supports rack toms and snare drums like never before.

SPECIFICATIONS:
[1" upper tube] [1 1/4" base tube]
Accomodates drum diameters 10"-16"
Lowest setting is 17" from the ground to the bottom snare basket tip, 26" highest

Patents (US 8395039, DE 102009024909)




Features


Neoprene® Pads
Neoprene® pads increase isolation and resonance.
Mega-Tripod™ Base
The Mega-Tripod™ base gives the 9399 the largest footprint of any DW snare stand.
Knurled Snare Basket Knob
The Snare Basket Knob can be easily reversed, allowing the basket to be in a more closed position for holding smaller drums.
snare techlock
The snare drum angle adjustment can be firmly locked with the Large Reset Handle and double locked with TechLock™.
snare basket
The Snare Basket can easily be removed from the tilter, enabling quick snare changes.
Plastic Tube Insulators
Plastic Tube Insulators inside the heavy gauge tubing are a necessity in recording situations to avoid rattling when drum mics are placed close to stands.
Hinged Memory Locks
Hinged Memory Locks are included at tube joints, cymbal arms and tripod leg assemblies to guarantee 100% repeatable, precise height settings every time.



back to top

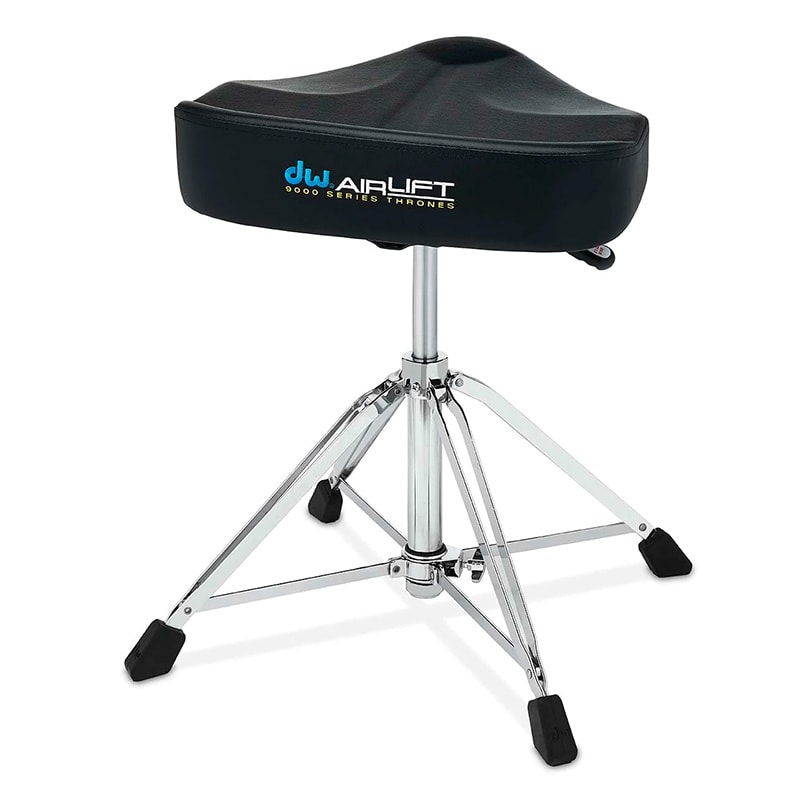

Air Lift Thrones



Air Lift Thrones are the next evolution in DW throne technology. Combining the workhorse features of DW’s 9000 line of thrones, Air Lift thrones also include a sturdier quad-leg folding base, and effortless pneumatic height adjustment.

The 9120AL design includes an optional backrest (sold separately, and exclusive to the Air Lift model) for those players that desire more support, while the 9100AL incorporates a more traditional seat top.

WARNING: This product contains Chemicals known to the State of California to cause Cancer, birth defects or other reproductive harm.


Airlift Thrones are
NOW AVAILABLE ONLINE




Features


Pneumatic Height Adjustment
The Pneumatic Height Adjustment allows quick and easy adjustment in seconds.
Sturdy 4-leg Base
The Sturdy 4-leg Base keeps you planted.
Special Foam Combination
The Special Foam Combination provides superior stability and comfort.



back to top

Workhorse Thrones


The 9100 round seat has a full 14” round top and is made up of a special combination of foam for stability and comfort.

The 9120 has an oversized tractor seat top. Both 9000 Series Thrones feature DW’s newly designed double locking clamp, vise lock seat clamp and an oversized 1” base for added stability.

Also Available in Gold



The 9101 (shown left) is identical to the 9100M, but with an extra-low tripod base for low-seated players.

Note: Optional Backrest is exclusive to the Air Lift models.

WARNING: This product contains Chemicals known to the State of California to cause Cancer, birth defects or other reproductive harm.


Airlift Thrones are
NOW AVAILABLE ONLINE




Features


Double Locking Clamp
The Double Locking Clamp ensures your seat height stays consistent.
Vise Lock Seat Clamp
The Vise Lock Seat Clamp keeps the seat married to its legs.
Special Foam Combination
The Special Foam Combination provides superior stability and comfort.



back to top

9909 Bass Drum Lifter



The patented design of the 9909 Bass Drum/Percussion lifter not only holds a variety of tom and bass drum sizes, it also cradles any size percussion instrument, allowing it to be played with a pedal (not included). (U.S. Patent No. 6215054B1)

Download the Manual: 9909 Bass Drum Lifter (1.3MB)

9909 Bass Drum Lifter
NOW AVAILABLE ONLINE




Features


folded
The 9909 can fold for easy transportation.
Shown with conga
Shown with conga.
Shown with djembe
Shown with djembe.



back to top
