5000 series pedals

Click to Navigate to a specific Pedal Type

UPGRADED 5000 AD4/TD4   |   HEELESS 5000ADH   |   SOLID FOOTBOARD 5000ADS   |   SIDEKICK 5000S   |   REMOTE 5002L&R

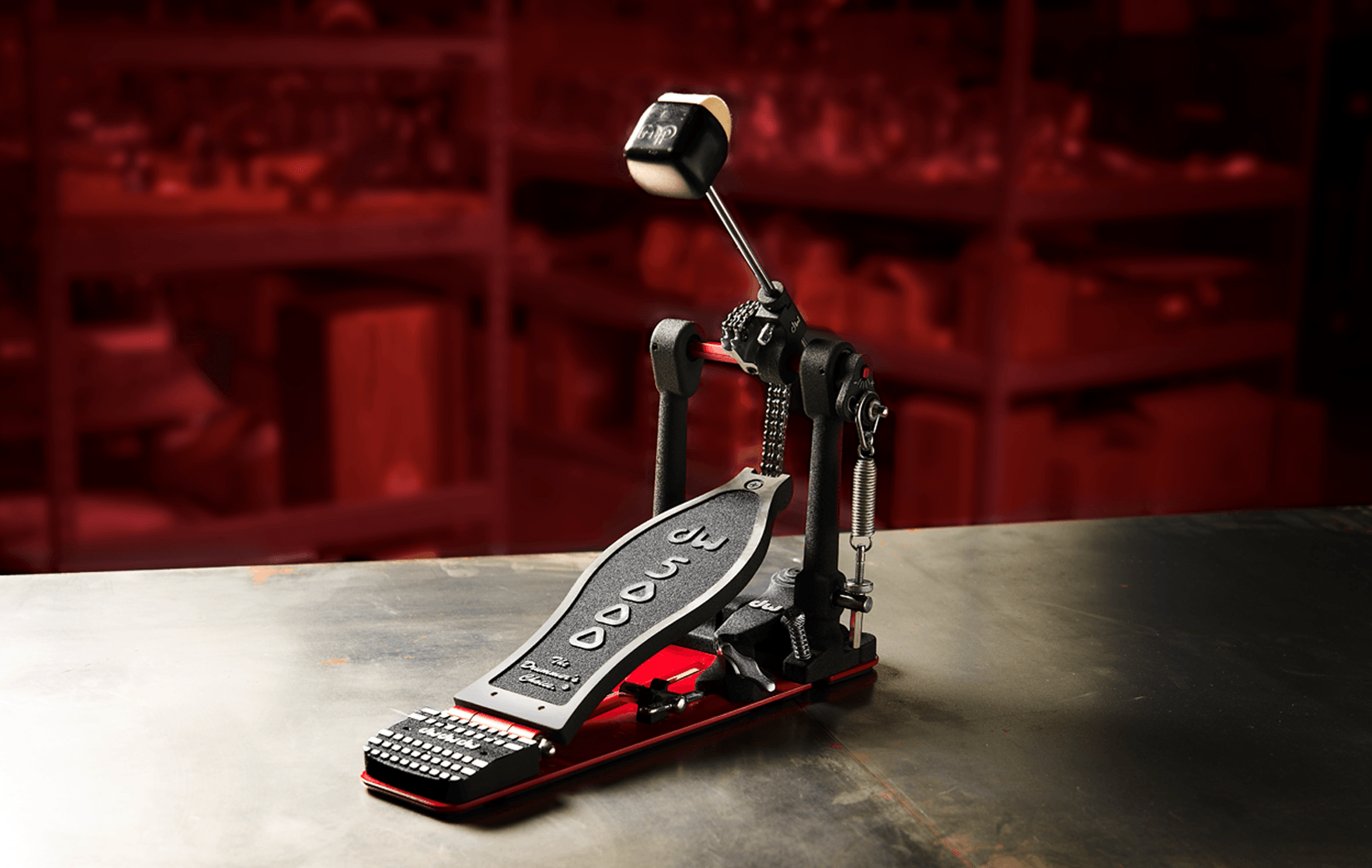

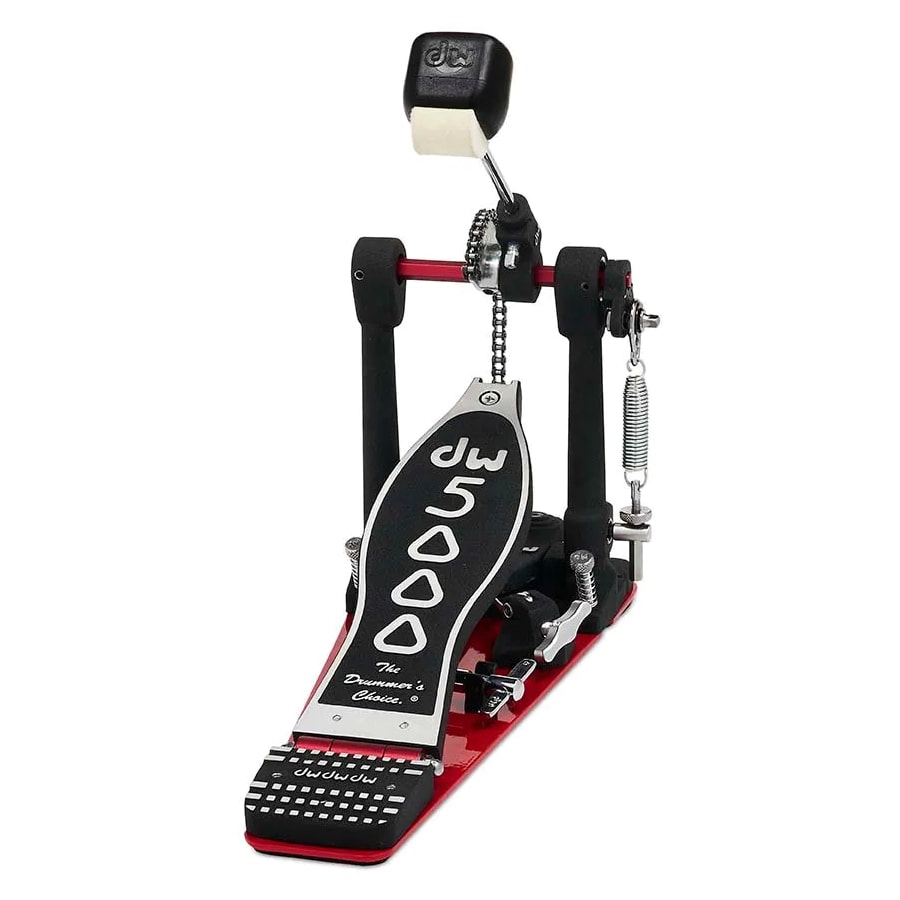

5000 Series (AD4) Bass Drum Pedals




AN INDUSTRY STANDARD GETS EVEN BETTER We’ve reengineered the pedal that established our reputation for innovation and quality. Because innovation is part of our DNA we thought it was time for some major improvements. Most notably, the toe clamp. The 5000 needed more gripping strength, providing a stronger connection between the drummer and kick drum. So, we developed the Tri-Pivot Toe Clamp. Three independent 360 degree, rotating rubber pads firmly pinch almost any diameter and thickness bass drum counter hoop from the top and the bottom, with zero slippage. Add to that a new textured rubber grip pad on the base plate and we think you’ll agree that there’s never been a better system for attaching a pedal to a bass drum. Last, but certainly not least, we wanted to improve on the smoothness and feel of the 5000, if that was even possible. To accomplish this, we added a Dual Bearing Spring Rocker, making the 5000 quicker and more responsive.

Featuring a host of refinements and upgrades, the legendary line of 5000 Series bass drum pedals still features a choice of drive systems, aluminum hex shafts, pedal plates and linkages, 101 two-way beater, and built in spurs. These pedals can be customized to fit the needs of any player.
The 5002 is also available in a "Lefty" version.
(U.S. Patent Nos. 5204485, 4756224, 5431081, 5578777. Foreign Patents Pending.)

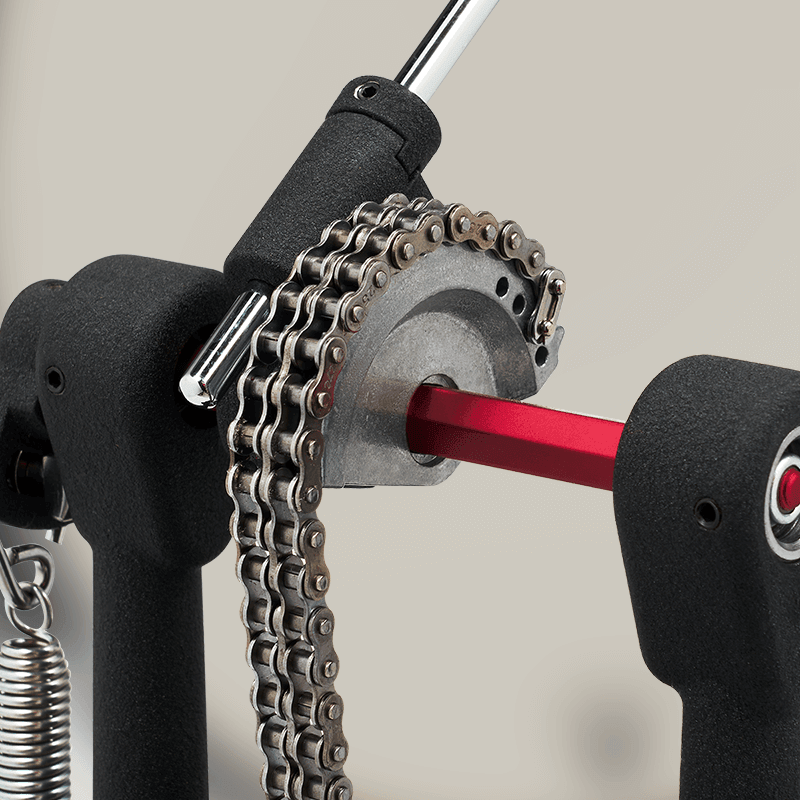

The Accelerator™ (AD4) drive system offers an eccentric motion that creates an indirect relationship between the sprocket and the footboard, increasing the velocity of the pedal by shortening the length of the stroke. It is recommended for situations that require increased speed and sensitivity.
The Turbo™ (TD4) concentric drive system maintains a direct relationship between the sprocket and the footboard to provide a solid, powerful, consistent feel and response.

5000 Series Pedals are
NOW AVAILABLE ONLINE



Features

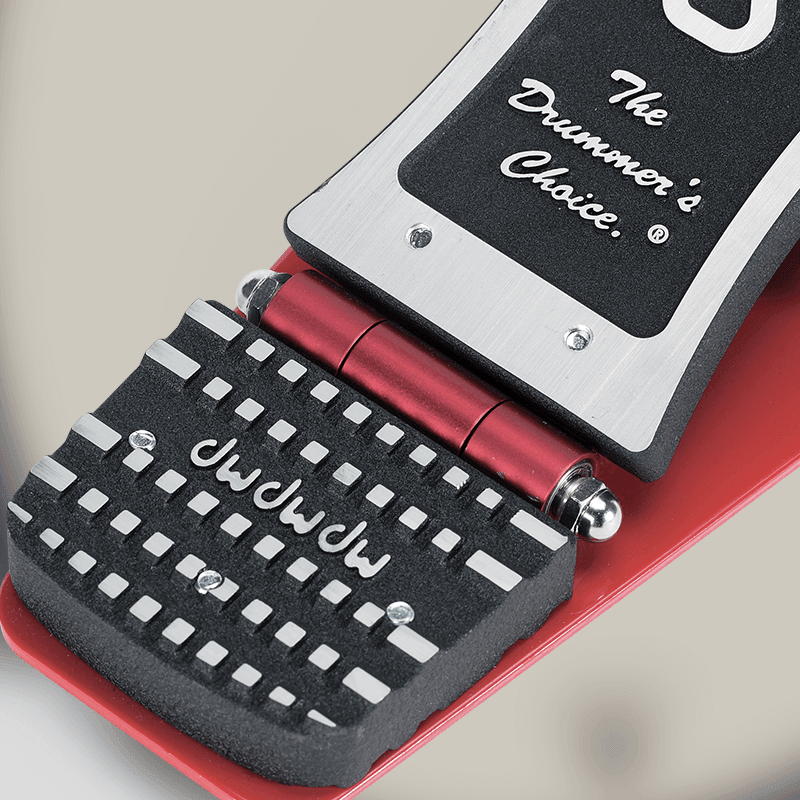

Delta Hinge
DW’s patented Delta Ball-Bearing Hinge is a state-of-the-art lightweight aluminum design that incorporates ball bearings at both sides.

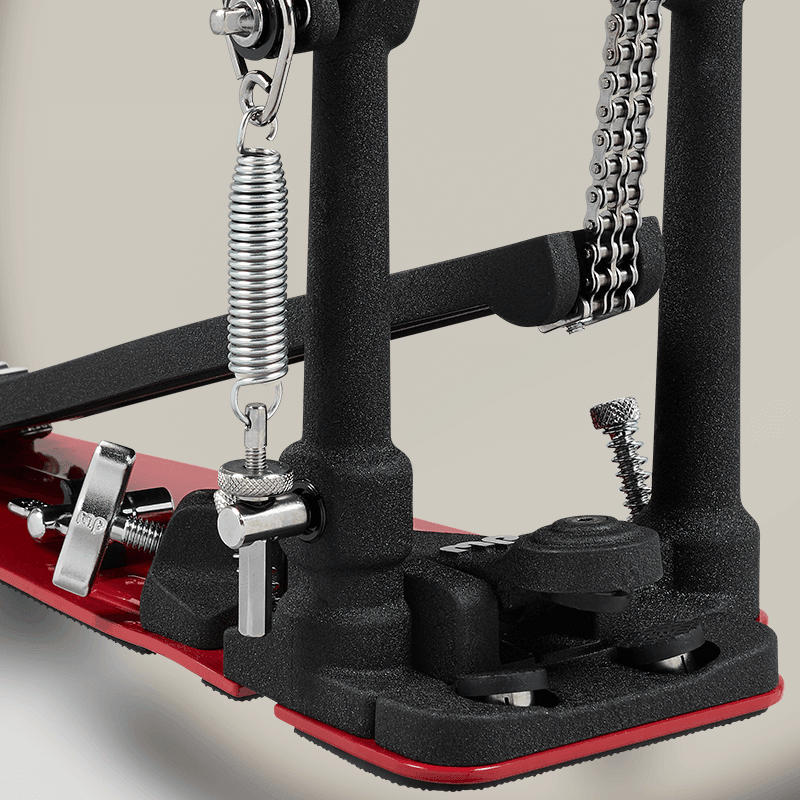

Dual-Bearing Spring Rocker
The AD4 and TD4 pedals feature a Dual-Bearing Spring Rocker delivering ultimate smoothness.
Tri-Pivot Toe Clamp
The NewTri-Pivot Toe Clamp ensures the pedal and drum stay connected no matter what hoop size or angle. Convenient Clip with Drum Key also included.
Single Post Casting
The Single Post Casting design on DW’s double pedals provides ease of movement between the pedal and hi-hat, also allowing the pedals to be played simultaneously.
Precision Universal
DW’s unique Universal Assembly (with memory lock) is made of aircraft grade aluminum, precision ground, heat treated and honed. (U.S. Patent No. 5396826)
5002 Pedal Case
The 5002 Double Pedal includes a New Nylon Carry Case.
Rubber Grip
The New Non-Skid Rubber Grip will keep your pedal planted wile being easily adjustble.
Cam Options
3 unique Drive Systems so you can get the response of your choice.
back to top

5000ADH Heelless Bass Drum Pedals




Part of a full line of 5000 Series specialty pedals, the 5000 Heel-less is a revolutionary design that offers drummer a low profile option that’s suited for both heel-up and heel-down players. It’s heel-less profile allows drums an uninhibited rocking motion that improves speed and makes for even, effortless double strokes on the bass drum.

Other features include aluminum hex shafts, pedal plates, and linkages, dual side adjusting hoop clamp, 101 two-way beater, and built in spurs. These pedals can be customized to fit the needs of any player. (U.S. Patent Nos. 5204485, 4756224, 5431081, 5578777. Foreign Patents Pending.)

The 5000ADH is
NOW AVAILABLE ONLINE



Features


Accelerator™ (AD3) Drive System
The Accelerator™ Drive System creates an indirect relationship between the sprocket and the footboard increasing the velocity throughout the length of the stroke.
ADH Delta Hinge
The ADH utilizes a unique Delta Ball-Bearing Hinge with a state-of-the-art lightweight aluminum design that incorporates ball bearings at both sides.
Bearing Spring Rocker
5000 pedals feature a Bearing Spring Rocker Assembly.
Dual Adjustable Toe Clamp
The Dual Adjustable Toe Clamp ensures the pedal and drum stay connected. Convenient Clip with Drum Key also included.
Pedal Bag
5000ADH Single Pedals come with an easy-travel, soft Nylon Bag.
5002 Pedal Case
The 5002ADH Double Pedal includes a New Nylon Carry Case.
Precision Universal
DW’s unique Universal Assembly (with memory lock) is made of aircraft grade aluminum, precision ground, heat treated and honed. (U.S. Patent No. 5396826)
back to top

5000ADS Solid Footboard Bass Drum Pedal




Identical to the 5000 pedal, but with a solid power footboard, The 5000ADS bass drum pedal features the Accelerator™ (AD3) drive system which offers an eccentric motion that creates an indirect relationship between the sprocket and the footboard. This increases the velocity of the pedal by shortening the length of the stroke. It is recommended for situations that require increased speed and sensitivity. Other features include aluminum hex shafts, pedal plates, and linkages, dual side adjusting hoop clamp, 101 two-way beater, and built in spurs. These pedals can be customized to fit the needs of any player. (U.S. Patent Nos. 5204485, 4756224, 5431081, 5578777. Foreign Patents Pending.)

The 5000ADS is
NOW AVAILABLE ONLINE



Features


Solid Power Footboard
The Power Footboard design offers a feeling and type of control you have to feel at least once. Great for heel-down players!
Delta Hinge
DW’s patented Delta Ball-Bearing Hinge is a state-of-the-art lightweight aluminum design that incorporates ball bearings at both sides.
Bearing Spring Rocker
5000 pedals feature a Bearing Spring Rocker Assembly.
Dual Adjustable Toe Clamp
The Dual Adjustable Toe Clamp ensures the pedal and drum stay connected. Convenient Clip with Drum Key also included.
back to top

5000S Sidekick Pedal




The 5000S Sidekick is an upward striking pedal that's perfect for cocktail set-ups or for adding a new kick sound to any drum kit. It's firmly supported by a 1/2" rod that conveniently slips into any DW TB12 floor tom bracket (10.5mm rod is also included for PDP tom brackets) and its unique rope drive feels natural and effortless. It boasts standard 5000 Series features such as a Delta ball bearing hinge, slotted stroke adjustment and 101 2-way beater. Add one to a 16" or 18" floor tom for an alternate wide-open tone.

The 5000S Pedal is
NOW AVAILABLE ONLINE



Features


Rope Drive System
The Rope Drive System that creates a smooth and direct relationship with the footboard while allowing maximum flexibility.
Delta Hinge
DW’s patented Delta Ball-Bearing Hinge is a state-of-the-art lightweight aluminum design that incorporates ball bearings at both sides.
5000S Spring
Standard 5000 features like Bearing Spring Rocker Assembly and 101 2-Way Beater convienently mounted to a 1/2" rod the size of a floor tom leg.
5000S Ball Joint
The Ball Joint leg attachments allows nearly limitless possibilities for pedal angles and placement.
5000S Legs
Both the DW Standard 1/2-inch & PDP-Spec 10.5mm Legs are included.
back to top

5002L&R Remote Bass Drum Pedals



Created for drummers that prefer offset pedals in relation to their kick drum positioning, or for players that like an auxiliary bass drum off to the side, these pedals feature an extended Precision Universal Joint and single chain Accelerator sprocket.

5000 Remote Pedals are
NOW AVAILABLE ONLINE



Features


Delta Hinge
DW’s patented Delta Ball-Bearing Hinge is a state-of-the-art lightweight aluminum design that incorporates ball bearings at both sides.
Bearing Spring Rocker
5002L&R pedals feature a Bearing Spring Rocker Assembly.
Dual Adjustable Toe Clamp
The Dual Adjustable Toe Clamp ensures the pedal and drum stay connected. Convenient Clip with Drum Key also included.
Precision Universal
DW’s unique Universal Assembly (with memory lock) is made of aircraft grade aluminum, precision ground, heat treated and honed. (U.S. Patent No. 5396826)
back to top
